Control valve servo kit

Part No: CVS-12V-KIT

$2.123.316 COP
Impuestos incluidos El envío será calculado durante el checkout.
Voltage: 12v
Option: Standard
DESCRIPCIÓN

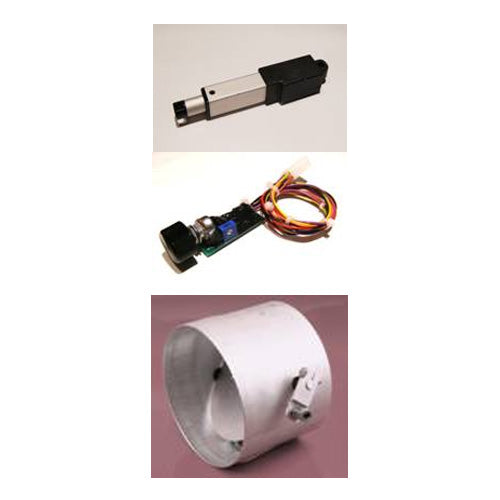

Control Valve Servo Kit (CVS) is a system for controlling valves and dampers and is ideal for heater flapper doors, oil cooler control, alternate air door, and ventilation dampers.  The CVS kit includes an instrument panel mounted controller, linear actuator servo and a pre-made 5-foot wiring harness.

CVS is available in four different models:  12-volt standard (30 mm travel linear actuator servo), 12-volt heavy-duty (50 mm travel linear actuator servo), 24-volt standard (30 mm travel linear actuator servo) and 24-volt heavy-duty (50 mm travel linear actuator servo).

Control Valve Servo Kit

Non-certified



CVS-12V-KIT

CVS-12V-KIT-HD

CVS-24V-KIT

CVS-24V-KIT-HD

Input Voltage:

10 – 15 volts DC

10 – 15 volts DC

22 – 30 volts DC

22 – 30 volts DC

Input Current:

0.5 amp

0.5 amp

0.1 amp

0.1 amp

Servo:

30 mm max travel

50 mm max travel

30 mm max travel

50 mm max travel

Max Drive Force:

2.5 lbs.

 10 lbs.

2.5 lbs.

10 lbs.

Max Holding Force:

10 lbs.

40 lbs.

10 lbs.

40 lbs.

Temperature Range:

-30° C to 70° C

-30° C to 70° C

-30° C to 70° C

-30° C to 70° C

Weight:

Servo:  1.1 oz.
Controller 1.0 oz.

Servo:  1.1 oz.
Controller 1.0 oz.

Servo:  1.1 oz.
Controller 1.0 oz.

Servo:  1.1 oz.
Controller 1.0 oz.

For Experimental Aircraft Only, not TSO’d
