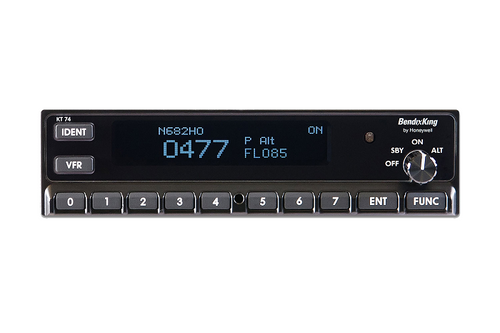

KT-74 Mode S Transponder


KT-74 Mode S Transponder

Mode S Transponder

Catalog No:

Manufacturer: BENDIXKING

Questions about the product protection? See the Warranty FAQs.

The KT-74 will be the next transponder on your "to-get" list.  With plug-and-play compatibility with the KT-76A/C and KT-78A model transponders, this is the easiest way to meet the 2020 ADS-B compliance date (when coupled to an appropriate GPS source).  Matched to the style of  new generation of BendixKing avionics, the KT-74 offers an intuitive user interface.  Pilots can simply enter the assigned squawk code into the unit with the push of four buttons, while VFR and emergency squawk codes can be directly entered with the touch of one button.  Flight ID is also supported.


KT-74 Advantage

  • Retrofit - "plug and play' installation

  • Low-cost solution that will offset future costs

  • Low power consumption

  • ETSO and TSO approved Mode S

  • Accurate readings with updates every few seconds

  • More efficient routing and better situational awareness

  • Meets ADS-B 2020 requirements*

  • Type Class 1 Mode S Level 2 els

  • Certification TSO C112D, C166B and ETSO C112C, C166B

  • Compliance DO-160G, DO-181E, DO-260B Class B1S, DO-178B Level B, DO-254 Level C

  • Supply Voltage (DC) 11 - 33 V

  • Typical Current Consumption

  • (at 14V) Idle: 0.22 A, Active: 0.45 A

  • Nominal Transmitter Power 240 W at connector

  • Operating Temperature -25 to +70

  • Cooling Requirement No fan required

  • Weight 1.35 kg

  • Dimensions H 43mm (1.7”)

  • W 160mm (6.30”)

  • L 272mm (10.7”)

*When connected to a compatible GPS source
